Brief Analysis of the Use of Quartz Tube
PCHAO brand industrial sight glass give you professional custom!
Website:www.panchaoglass.com
Address:Room 1624, Jing Ye Gong Yuan Guo Ji, Jin Sui road and New Second Street intersection, Xin Xiang city, Henan Province, China
Phone: +8613569413718

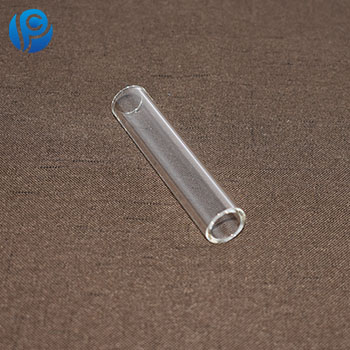

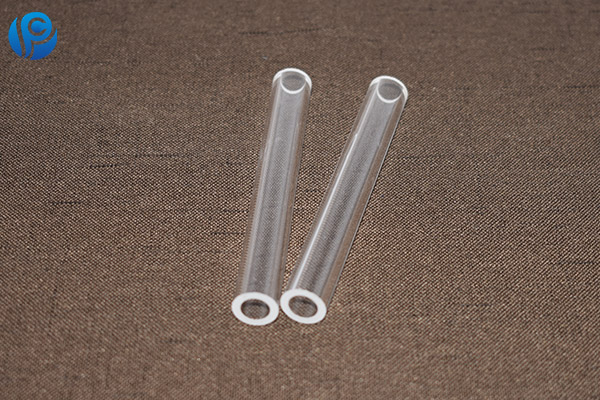

Quartz tubes can be roughly divided into the following categories: transparent quartz tubes (outer diameter 1.5mm~300mm), ultraviolet quartz filters, color quartz tubes, etc.
1. The softening point temperature of high temperature resistant quartz glass is about 1730 C, which can be used for a long time at 1100 C, and the maximum temperature can reach 1450 C in a short time.
2. Except hydrofluoric acid, quartz glass hardly reacts with other acids. Its acid resistance is 30 times that of ceramics and 150 times that of stainless steel. Especially at high temperature, its chemical stability is incomparable with any other engineering materials.
3. Good thermal stability: the thermal expansion coefficient of quartz glass is very small, and it can withstand drastic temperature changes. When quartz glass is heated to about 1100 C, it will not burst in normal temperature water.
4. Good transmittance: Quartz glass has good transmittance in the whole spectrum band from ultraviolet to infrared. The transmittance of visible light is over 93%, especially in the ultraviolet spectrum region, the maximum transmittance can reach more than 80%.
5. Good electrical insulation performance: Quartz glass has 10,000 times the resistance of ordinary glass, and is an excellent electrical insulation material. Even at high temperature, it also has good insulation performance.
Quartz glass is widely used in many fields such as electric light source, semiconductor, optical communication, military industry, metallurgy, building materials, chemistry, machinery, electricity, environmental protection and so on because of its excellent physical and chemical properties.
If you are interested in the quartz glass tubes, silica quartz glass or need to consult, please click on our online customer service, or call us.
If you are interested in the quartz glass tubes, silica quartz glass or need to consult, please click on our online customer service, or call us.
Pan Chao, customized different quality specifications of the glass.
Pan Chao special industrial glass, tailored for your different quality of the glass.
Welcome sending your inquiry: Phone : +86 13343800331 Email: info@panchaoglass.com
